Features
Open and Flexible to change
6 axis hardware and software

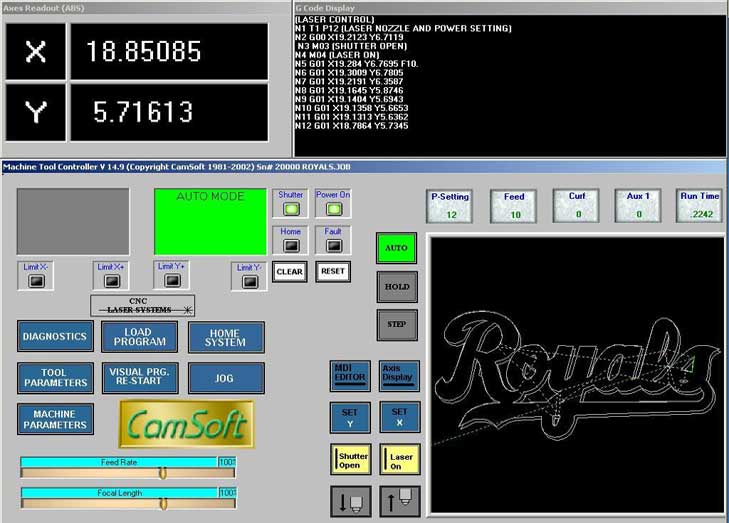

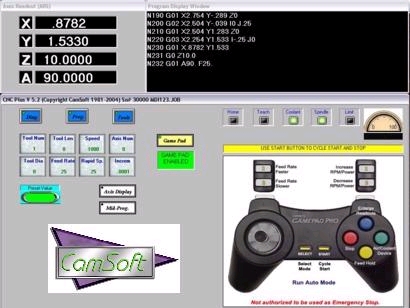

Customizable Operator Interface
Create your own Bitmapped Imaged Operator Screen
Have your own logo and product identity displayed
199 customizable G and M codes
Imports 3D DXF, IGES, HPGL, Gerber and CADKEY
3D Graphic Tool Path Simulation

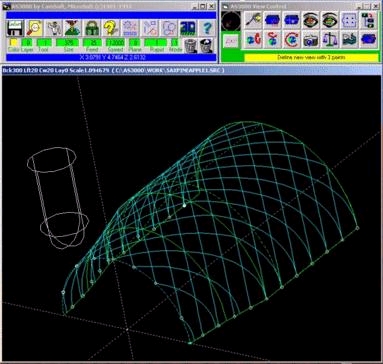

3D CAD/CAM Graphics
3D Drawing and Tool Path
3D Multi-media Windows based CAD/CAM system
Includes HMI for Mills, Lathes, Routers, Flame cutters, WaterJets, Lasers, Grinders and EDM's

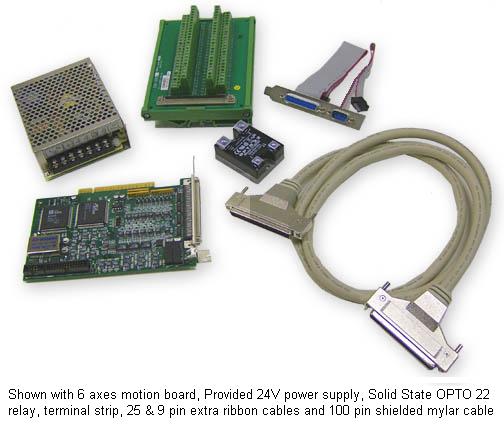

32-bit PCI bus, plug & play card
(Qty 6) High resolution 16-bit +/- 10 Vdc Analog Outputs for Closed Loop Servos, Spindle, Voltage output or Power settings
(Qty 6) PENDING - Step/Direction up to 500 kHz for Stepper Motors or Pulse Trains
(Qty 6) 32-bit High Speed Differential Pulse Counters up to 500 kHz for Encoders or Hand Wheels
(Qty 6) 12-bit Analog Inputs for reading Voltages or Speed and Feed Override pots
(Qty 19) Opto-Isolated Digital Inputs triggered by hardware interrupt
(Qty 7) Opto-Isolated Digital Outputs
All Digital I/Os and Encoders are 2500 VRMS Opto-Isolated
32,000 Position Move Buffer / Unlimited Program Size
Automatic Servo Tuning Software Included
Full Break Out Terminal Strip
1.5 Meter Shielded Cable
Power Cord
24 VDC Power Supply
OPTO22 Relay 3-32vdc input - up to 60V , 5A output
Provided Terminal Strip Breaks Out
Servo Motors, Encoders, HandWheels, Spindle Control
General Purpose +/- 10V Analog Inputs & Analog Outputs
Amp Enables, E-Stop
Feed & Speed Pot Overrides
5V, +/- 10V, 12V or 24V Access
Logic commands to create any routine such as tool changer, homing or probing
Huge Library of pre-written logic routines templates provided
Unlimited G code Program Size
Offer free posts to other model CNCs for better salability
User Configurable G and M codes Table
User Diagnostic Software
Remote machine diagnostics, history and control from XP
Automatic machine maintenance reminders
Remote Machine Monitoring and Diagnostic
Event driven digital I/O logic
No physical PLC or Ladder Logic necessary
Works with Office NetWorks
2 Printed Manuals Totaling 800+ pages
Self Guided Tutorial Manual
Operators and Setup Manual
Complete Electronic Quick Search Database
Expandable with 100% software buy back upgrade policy
Offer other CamSoft upgrade options for high profits
One year free Maintenance/Support/Updates
CAD/CAM Features Included are:
*Off the shelf Post Processors provided at no charge to be used on your other machines*
Solid modeled tool animation with verification
Animation shows material removal with light source shading and zooming
Simulator shows scallops made by the tool to show the real finish
6 Automatic Mill roughing routines: Zig-Zag
Spiral
Visual Roughing
Drill
Constant Velocity Swirl Roughing.
Z Level Roughing
9 Lathe roughing routines:
OD /ID
Valley
Facing
Turning
Profile
Casting
Boundary
Groove
Tapered
3D paths are created using 2D contours that slice the part in the Z axis by stepping up or down.
Create your own new feature customized to your specifications with a question and answer format as a standard feature.
Create a "Family of Parts" using the included 3D utility language.
Parametric programming containing hundreds of 2D and 3D math commands, logic statements, decision making commands and character, word and string manipulations to parametrically alter your parts by changing one value.
Included Utilities:
Family of Parts, Auto Grooving, Clean Out Boxes, Conical Shapes, All Fanuc Lathe Canned Cycles, Helix, Lathe Center Drill & Pecking, 4 Axis Rotary Tables, Spiral Roughing, Thread Cutting, Individually Modify Each Axis, 3D Cross Sections, Create Tabs, Hole Patterns Library, Ruled Surfaces, Multiple Step Down Tool Paths in the Z Axis, Bend or Twist Parts, Harmonic Cams, Constant Velocity Cams, Cylindrical Projections, Flattening a Part, Lathe Part Off Routine, 3D Path Created from a Top and Side View, Surface of Revolution, Wrap a Part in 3D, Create Box with 4 Radii, Ask Depth, Ask to Select a Tool Path with the Mouse, Select a File, Ask Speed, Feed, Tool Number, Tool Size, Rapid Plane, Machining Plane, Retrieve Information from Tool Libraries, Copy a Tool Path while Changing Something in It, Reverse Tool Path Direction, Optimize Tool Path Motions and Hole Patterns, Group the Same Tools Together, Search Geometry Database, Change Geometry, Search Tool Paths, Change Tool Paths. Surface of Revolution, Swept Surface, Ruled Surface, Cross Section and Top + Cross Section. Automatic gear utilities enable the user to create a gear program by just answering a few questions.
A few of many options
High Speed Machining up to 3,000 ipm cutting speeds
EtherNet Style Motion cards
Non-Proprietary Hardware Sources
Many Hardware Vendors for Future Replacement parts
Expandable up to 344 I/O with logic
CNC Professional software Upgrades/Advanced Features
Up to 8 axis motion
Simultaneous 5 Axis CAD/CAM programming
Solid Models and Surfacing CAD/CAM software
Dynamic Feedrate Control
True Type Font Engraving
Raster to Vector graphic image cutting
Automatic Nesting
High Speed Laser Scanning
Probing and Digitizing
SmartPath look ahead optimization
Several handheld, touchscreen, hanging or floor standing operator pendants
Pre-installed/pre-configured MicroSystem computer
Complete Servo or Stepper Motor/Drive Packages
Nationwide On-Site Customer Support or Service

CNC Professional Option
Requirements/Restrictions
Windows XP only
No more than 6 servo axes
Runs a provided real-time kernel to feed the card positions. Has no on-board memory
Maximum cutting feed rates limited to a range between 150 to 1,200 IPM or (3,700 to 30,000 mmpm)
Recommended is a fast CPU such as CamSoft's Premium MicroSystems Brand
Minimum CPU speeds start at:
(2.4 Ghz AMD Athlon or 3 Ghz Pentium IV or 1.86 Ghz Intel Core 2)
A dedicated PC which can not run other programs at the same time such as:
(Vision Cameras, InterNet, Screen savers, NetWorks, Virus checking, Schedule reminders or 3rd party programs ect..)
